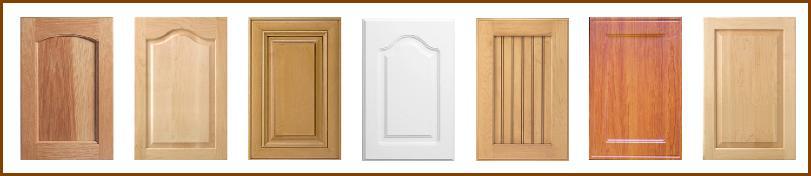

Supports all drawer styles and allows user-defined door style library.

Can switch between millimeters and inches at virtually any time.

You may create parameter-generated parts.

Each door entry can have its own material, style and manufacturing definitions.

Dimensioned drawing of each door.

Up to three different sized panels per door.

Multiple inside rails and stiles.

Control over all part widths, insets, etc. per door.

Automatically adjust door rails and stiles based upon the size of the door or drawer front

Export Cutlists reports to Microsoft Excel, or to the internal Word Processor.

All versions of Door Pro are Single User versions that must be installed on the C drive of a given computer.  Network Versions are additional cost (See the Network Module).

Allows change of door style per door.

Allows change of frame and panel material per door.

Allows construction comments per door.

Allows multiple sorting of doors in job by style, material, height and width.

Allows alteration of construction methods per door.

Allows user-defined options and accessories per door.

Door Options may be assigned during the job or always attached to the Door Style itself.


The Owner or Administrator creates a special password, referred to as a Security Key, where full access may always be granted in case the computer is locked up and inaccessible for any reason having to do with given user's ID and Password.

Cabinet Pro LLC holds a "back door" UserID and Password that can unlock any computer, under any circumstances.

Up to 20 users may be added to any computer, where each user has separate passwords and permissions.

The Owner or Administrator determines which permissions each user may have when he/she logs in.

From 1 to 13 Separate Permissions may be assigned to each user that become active when that user logs onto Cabinet Pro or Door Pro..

These 13 permissions allow Changing CNC Setup, Changing Construction Setup, Modifying Libraries, Changing Pricing Setup, Viewing or Pricing & Bids, Printing of Graphics, Generation of CNC Code, Backing up Data, Restoring Data, Changing Inventory, Selecting Data to Restore Single Jobs, Changing Network Settings, and Editing Cabinets.

Keeps a permanent record of all user activity such as when a cabinet was modified, inventory was changed, pricing was viewed, Network settings were changed, etc.


All Network Settings on all computers may only be altered by a User who has been assigned Administrative Permissions (See Security System above.)

Allows the selection of what information should be accessed via the Network, such as Inventory, Jobs, Customers, and the Door Style Library.

Each station, or user, may select from where information is being accessed, either the network drive or the local drive.

All backups are stored on each local drive so as to ensure each user's data is safe and able to be restored.

Backups are restored on the local drive, where only the Administrator may transfer selected information to the Network drive.

Allows all data to be transferred from the Network drive to the local drive, for those times a user prefers working from his own local drive.

Each station may elect to use the Network drive or the local drive when accessing data.  This allows each user to work independently from the Network drive.

All Bidding, Cutlist, and CNC information is stored on the local drive in order to avoid unwanted modification of vital setup files.

Each station may individually switch back and forth from using the local drive or the network drive.

Allows UserID & Passwords for each user to have restricted use of Cabinet Pro or Door Pro (See the Security System above).

Unlimited User-Defined Manufacturing Reports

Material lists, parts lists, assembly lists and edge banding reports for entire job.

Produces door & individual part labels.

You may either consolidate all doors into one report or generate separate reports per door style.

Reports may be printed in either millimeters or inches per column of same report.

Heavy & light designations (for example: "7/32" may be represented as "3/16+", or "7/32").

Multiple sorts according to door style, panel material, panel thickness, door width and door height in any order.

Bill of material and lineal foot summary reports for panels & lumber by material or by part.

Allows report on all parts and materials or selected parts and materials.

Milling dimensions or finished dimensions may appear on different reports.

Can print out machining notes for parts and template to be used for cathedral doors.

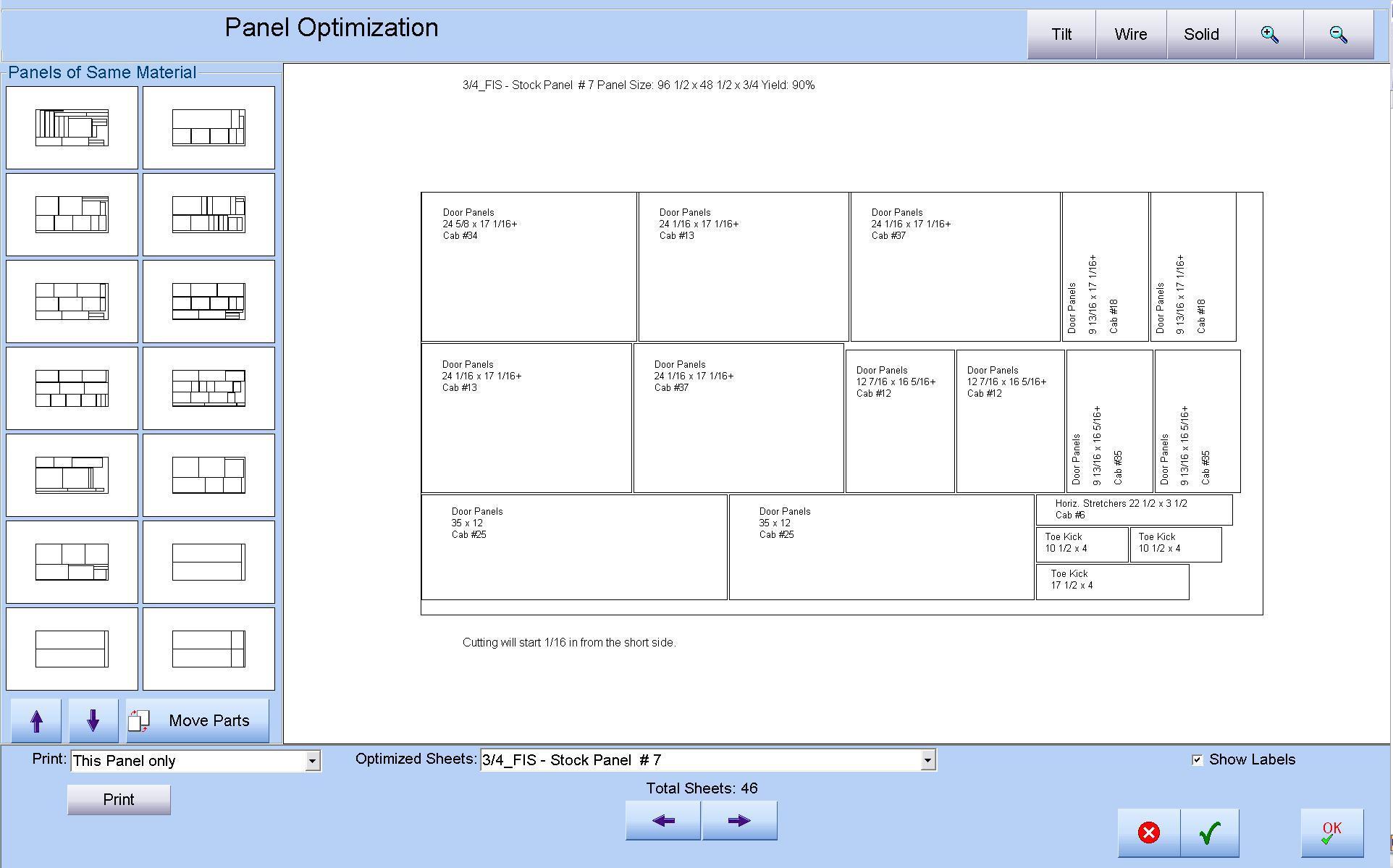

Panel Optimization available at additional cost.

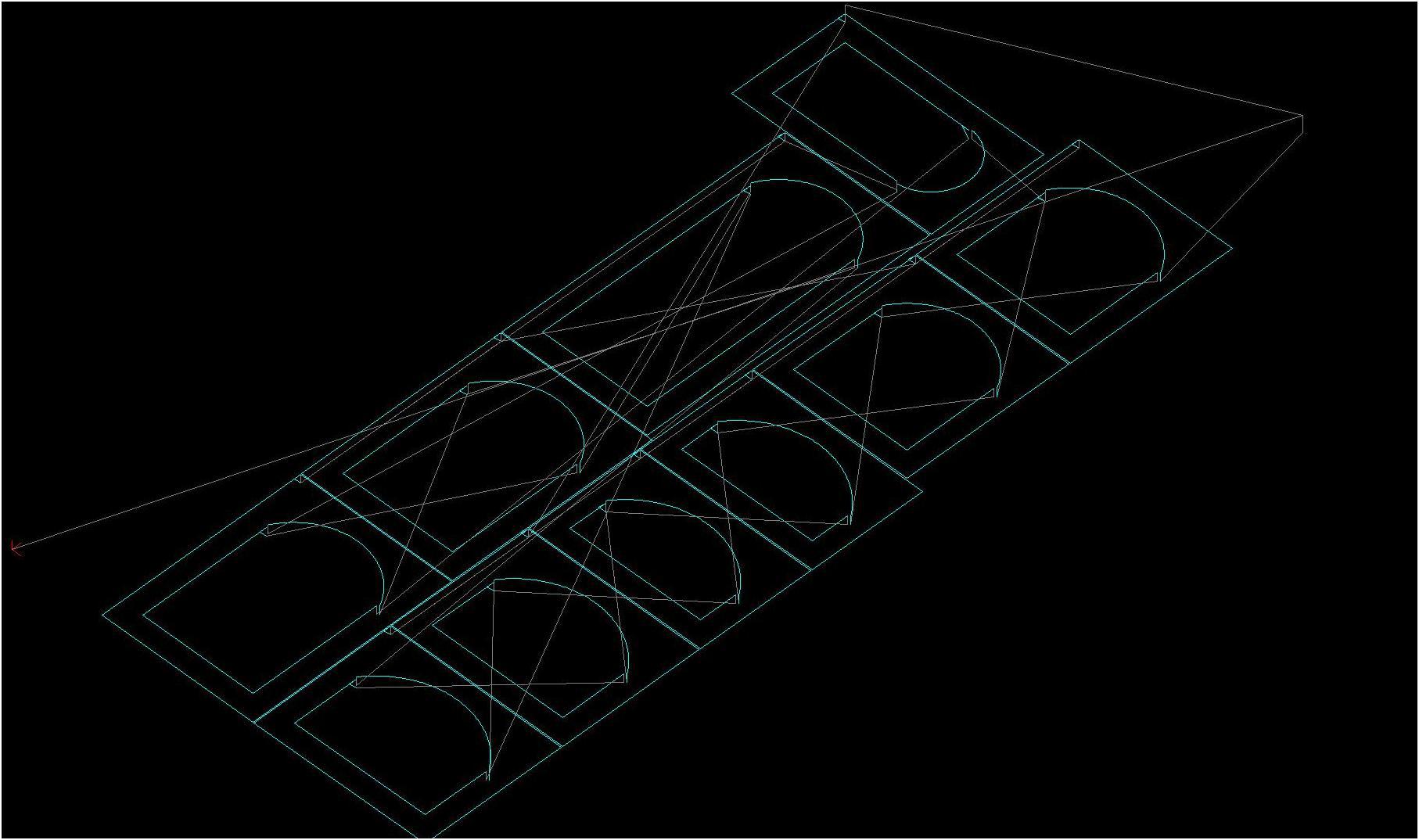

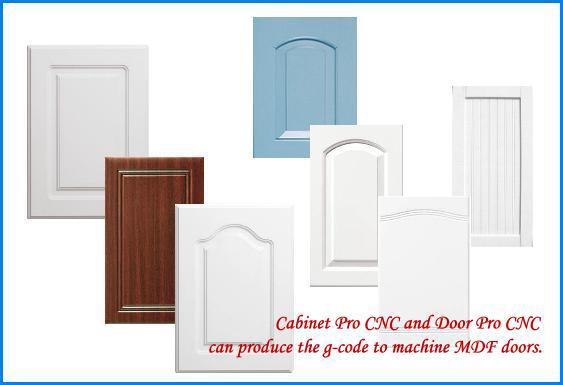

CNC capabilities available at additional cost (see below).


User-Defined Financial Reports

Provides job costing & financial analysis of a job – including comparison of current bid with expected bid.

Prints an invoice, bid, packing list, confirmation repot and contract for a job.

The bid that is printed can be turned into an invoice, analysis, confirmation report or contract at any time.

Figures cost of materials, hardware, labor, accessories, installation, finishing, freight, taxes, etc.

Allows user definitions of all labor activities and costs.

Allows user-defined charges that are either taxable or not taxable.

Adjusts bid to allow for actual labor spent vs. estimated labor.

Determines Door costs by numerous methods such as sq. ft. charges (or sq. m), plus style upcharge, United Inch method, Flat rate + Style Upcharge + Cost/Lineal Inch over a standard height.

Allows discounts per customer, or specific pricing per customer.

The 3 Added Door Charge options below can be global or assigned to specific door styles.

Added Door Charges based upon width and height, where a flat charge is added to the price of a door.

Added Door Charges based upon width and height, where width & height factors are added together and then multiplied by the price of the door.

Added Door Charges based upon width and height, where a flat charge is added to the price of a door with width as a subset of height.

If pricing is based upon material, then Door Pro allows basing your charge upon Door Panel material, Frame Material, or both independently.

Numerous methods of pricing drawer boxes.

Separate markups for material, accessories, hardware, options, and the door, drawer, or drawer box themselves.

May choose to apply the General Markup to Finish costs, Accessories, and User Defined Charges.

Packaging Charges, Freight Charges, Sales Tax, Discount Percentage, Overhead Charges, User-Defined Taxes to incorporate multiple Canadian taxes.

Calculates Profit, where profit is defined as the difference between what the job is sold for and what the job actually cost.

Extract the doors and drawers from jobs designed by customers owning Cabinet Pro and emailed to your email account.

Recommend a Cabinet Shop to receive an additional discount, and extract their doors for jobs emailed to you.  See our Company Policies on this topic.)

Customization per Company Available (Most customization of Door Pro is free of charge.  Company-specific customization is at additional cost).
